DC solar architecture
Designed for systems centered on direct solar DC operation.
24V / 48V DC and AC/DC hybrid cooling
24V/48V Solar Air Conditioner Manufacturer
DC and hybrid inverter solar air conditioners for off-grid homes, cabins, shops, telecom sites and renewable-energy cooling projects.
0.5–2 ton0.75–3 HP24V / 48V DCDC & hybrid systems
DC solar AC

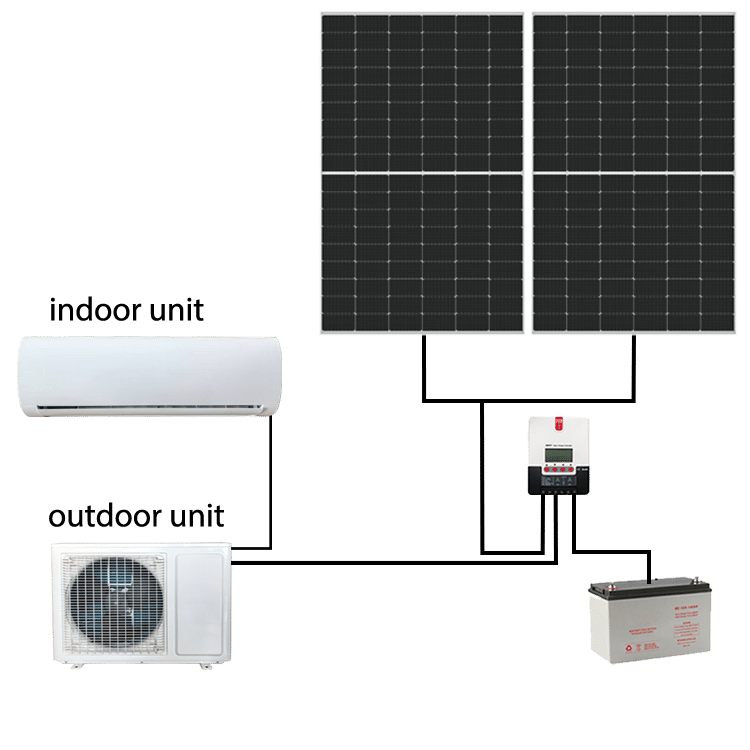

Solar AC system

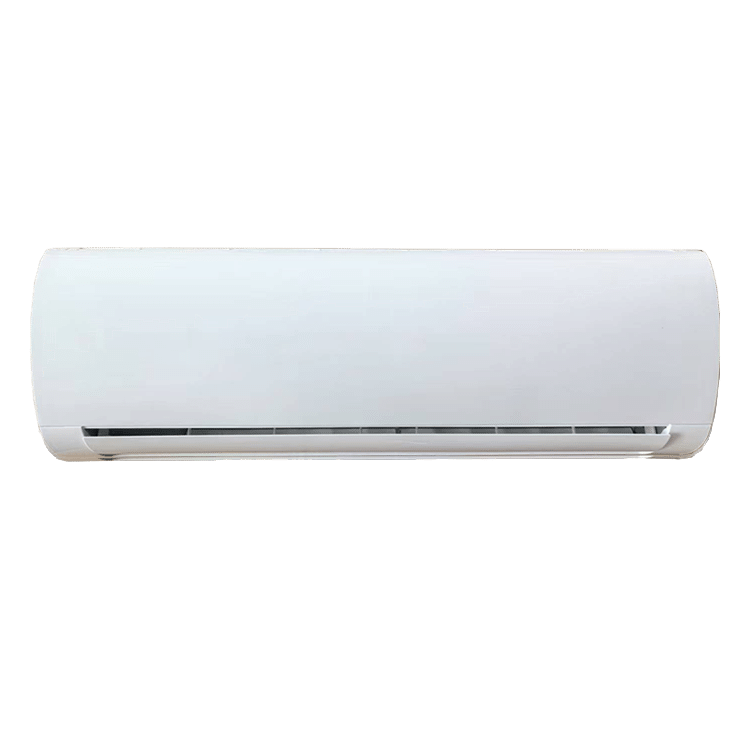

Indoor unit

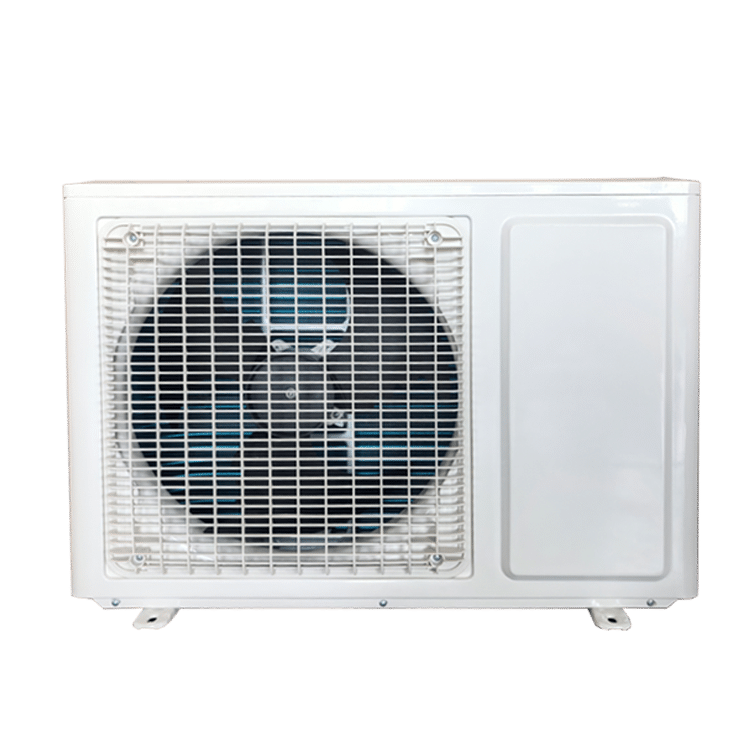

Outdoor unit24V / 48VDC system options
0.5–2 tonPublished cooling range
0.75–3 HPPublished model range
DC / hybridPower architectures
Product highlights
Built for practical solar cooling projects
Review the cabinet, controls and power-system features before choosing a model.
AC/DC hybrid flexibility
Combine solar contribution with grid or generator backup.
Inverter room cooling
Match capacity to climate, insulation, windows and operating hours.
Project configuration support
Confirm voltage, solar array, batteries and autonomy before quotation.
Power options
Three practical operating methods
Select the power architecture around the site, autonomy target and available backup source.
0124V / 48V DC solar
For off-grid projects designed around a DC solar power architecture.
02Battery-supported cooling
Size storage around cooling load, climate and operating schedule.
03AC/DC hybrid system
Use solar with grid or generator backup where supply is unstable.
Specifications
Compare every published model
Use the table for initial selection, then confirm the final system with Besuncool for the destination climate and operating schedule.
The current published specification table documents BS17GW and BS26GW. Confirm the exact model-to-capacity mapping, room load and solar-system limits for the quotation.
| Specification | BS17GW | BS26GW |
|---|---|---|
| Horsepower | 0.75 HP | 1 HP |
| Tonnage | 0.5 ton | 0.75 ton |
| Cooling capacity | 6000 BTU / 1700W | 9000 BTU / 2600W |
| Heating capacity | 7000 BTU / 1900W | 10000 BTU / 2800W |
| Indoor / outdoor noise | ≤36 / ≤48 dB | ≤40 / ≤50 dB |
| Air circulation | 400m³/h | 450m³/h |
| Suitable area | 6–10m² | 10–15m² |
| EER | 4.52 / 15.88 | 4.56 / 15.79 |
| Refrigerant | R134a | R134a |
| Working temperature | −15°C to +60°C | −15°C to +60°C |
| Power input | 350W | 500W |
| System voltage | DC 12V | DC 24V / 48V |
| Recommended solar panels | 2×400W | 2×400W |
| Recommended battery | 2×120Ah | 2×120Ah |
| Charge controller | 1×24V / 20A | 1×24V / 20A |
Swipe horizontally on mobile to compare every model →
Applications
Real-world solar cooling
Choose the power architecture before final model selection.
Off-grid homes and cabins
Solar room cooling for remote buildings and renewable-energy homes.
Shops and workspaces
DC cooling for commercial spaces where the grid is weak or unavailable.
Hybrid project sites
Solar contribution with grid or generator flexibility for reliable operation.
Project & OEM support
Configure the right product and solar system
Share the required model, quantity, destination, ambient temperature and power-system plan. Besuncool can support capacity selection, battery sizing, panel matching and export packaging.
- Capacity and model selection
- Battery and solar-panel sizing
- Logo and cabinet customization
- Sample and container quotations
